Drainiac® Petroleum Filter Valve

$295.00$1,475.00

Cut your secondary containment stormwater discharge costs in half. A secondary containment filter valve that automatically shuts off in case of an accidental spill.

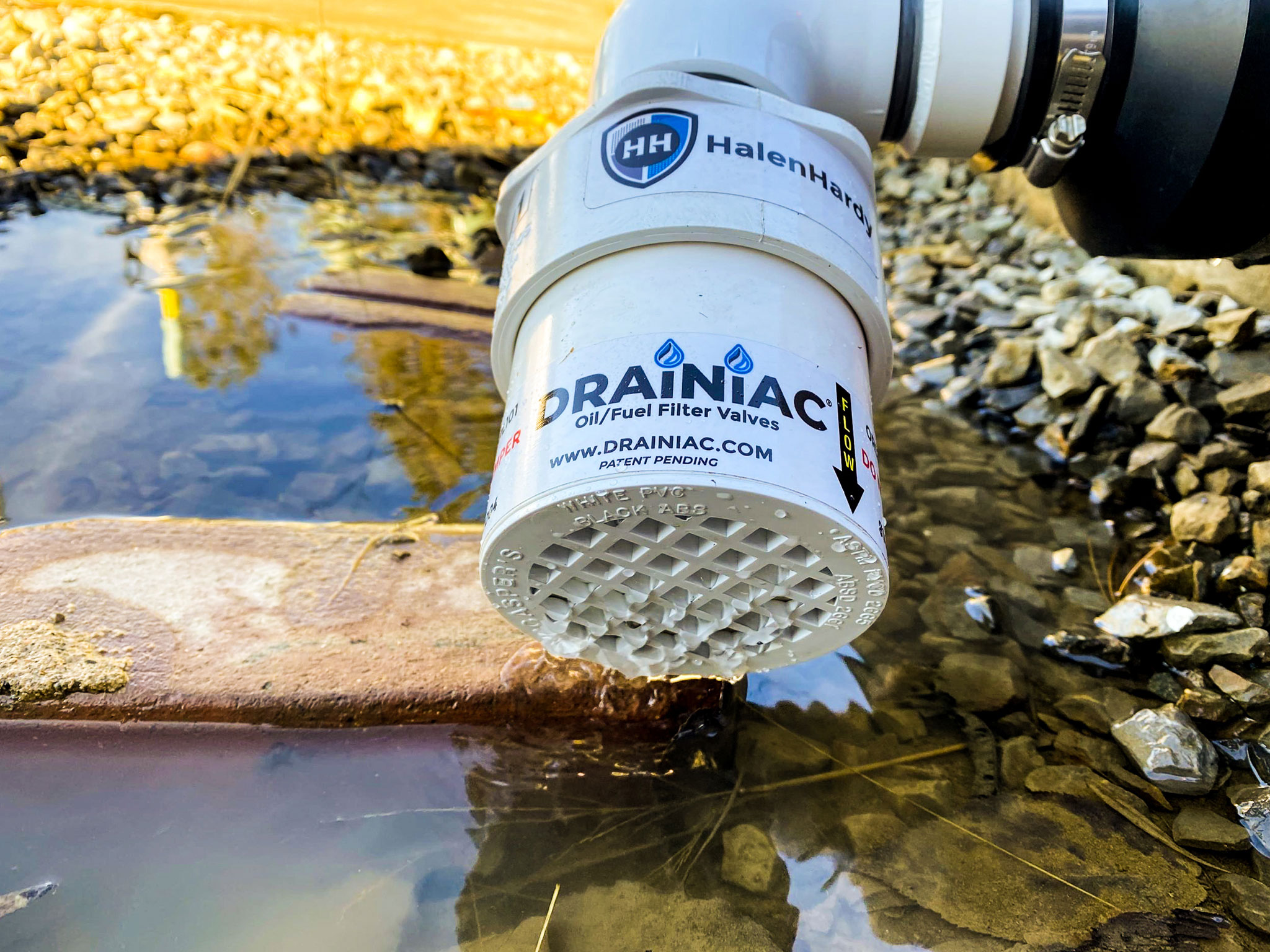

Discover the cost-effective way to stay ahead of sheen water inside of your secondary containment. Filter media automatically swells up and shuts off in case of an accidental spill. Perfect for outdoor, above-ground secondary containment.

Stay in SPCC compliance.  Implement as a Stormwater SWPPP Best Management Practice (BMP). Available in the following sizes:

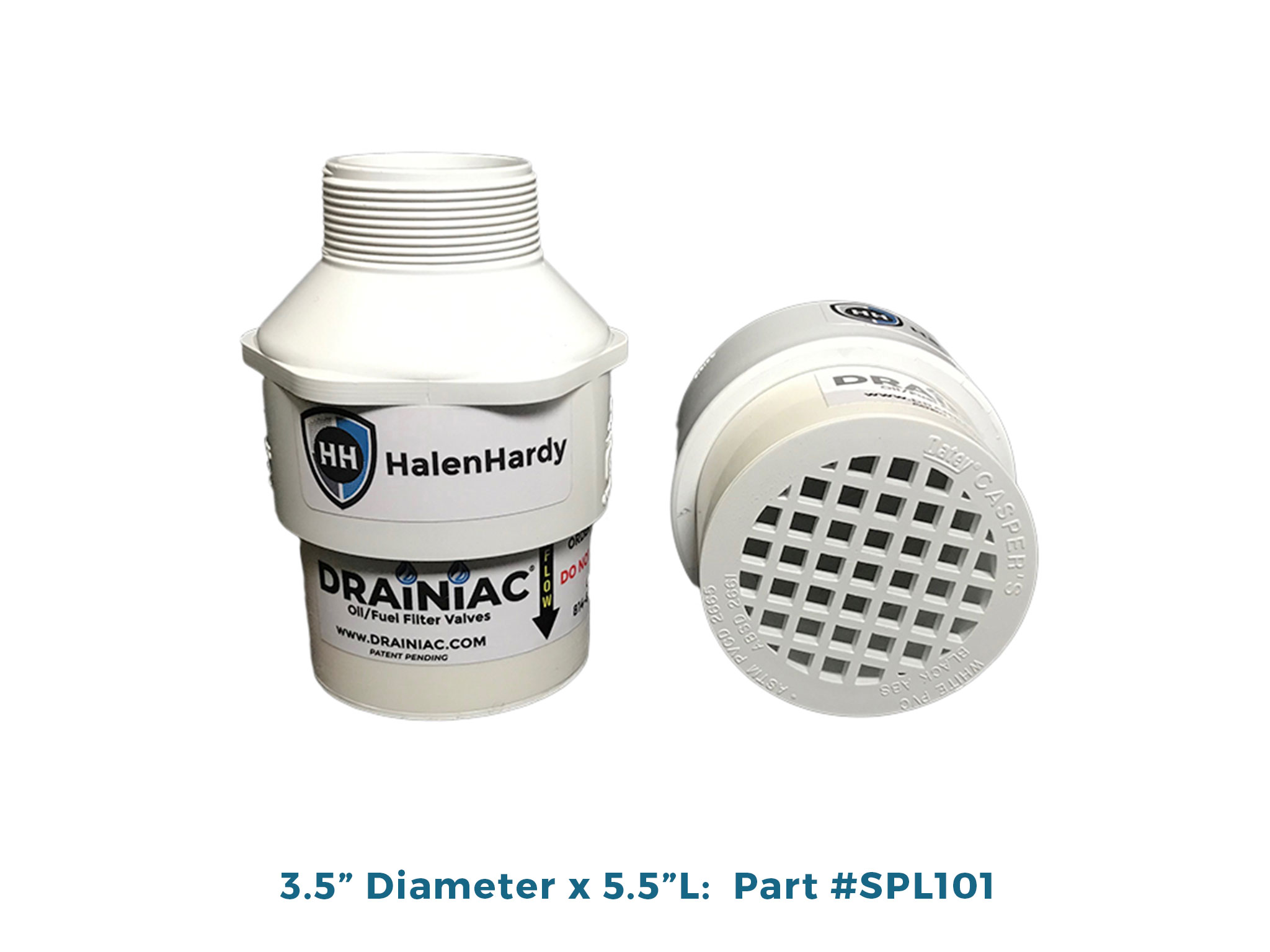

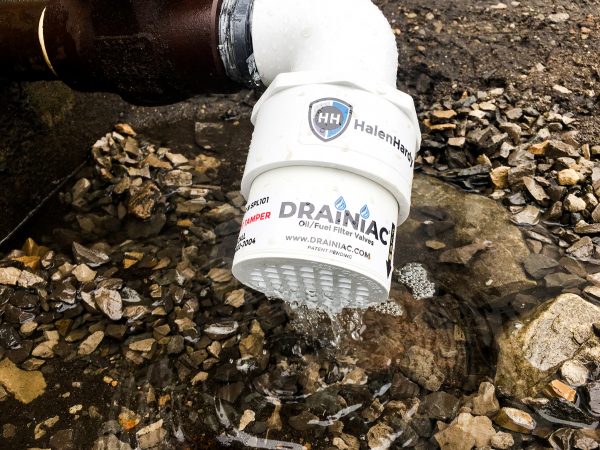

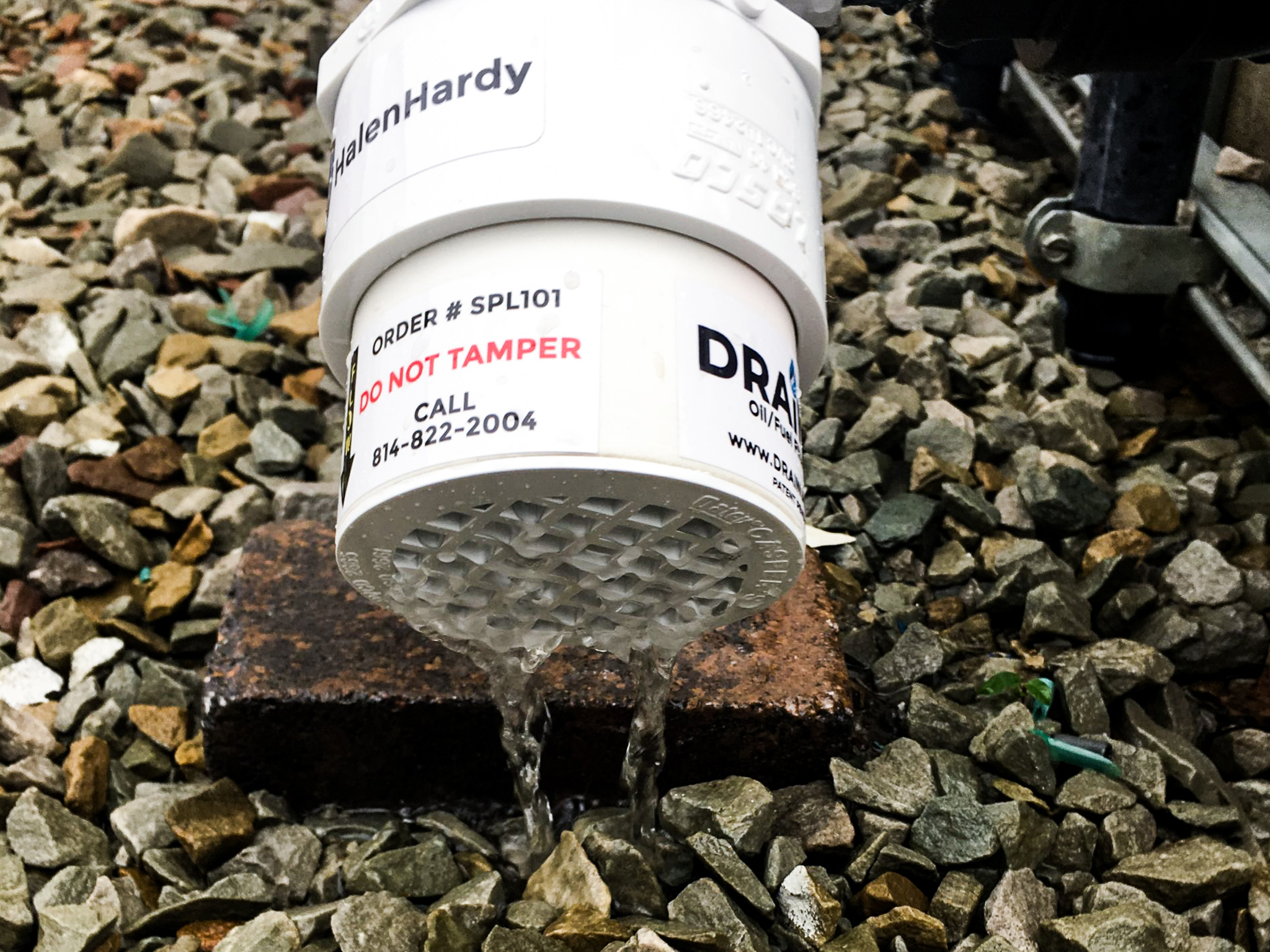

  • SPL101:  3.5” Diameter x 5.5”L
    56.6 gallons per hour flow rate measured while draining from 2” to 1” of head pressure
  • SPL101-.75MIPT:  3.5″ Diameter x 5.5″L with .75 MIPT Fitting
    (Replacement filter valve for portable containment)
    56.6 gallons per hour flow rate measured while draining from 2” to 1” of head pressure

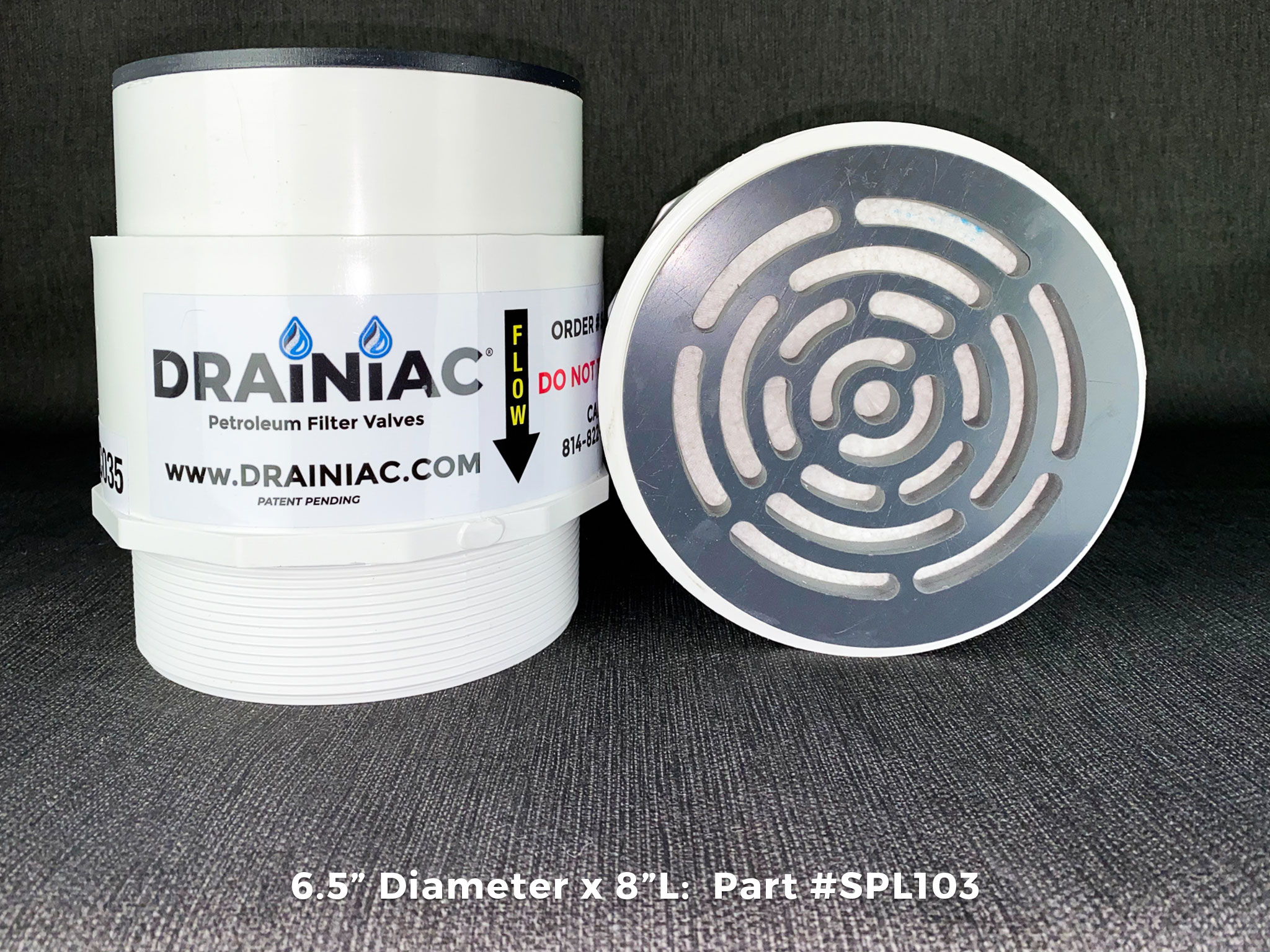

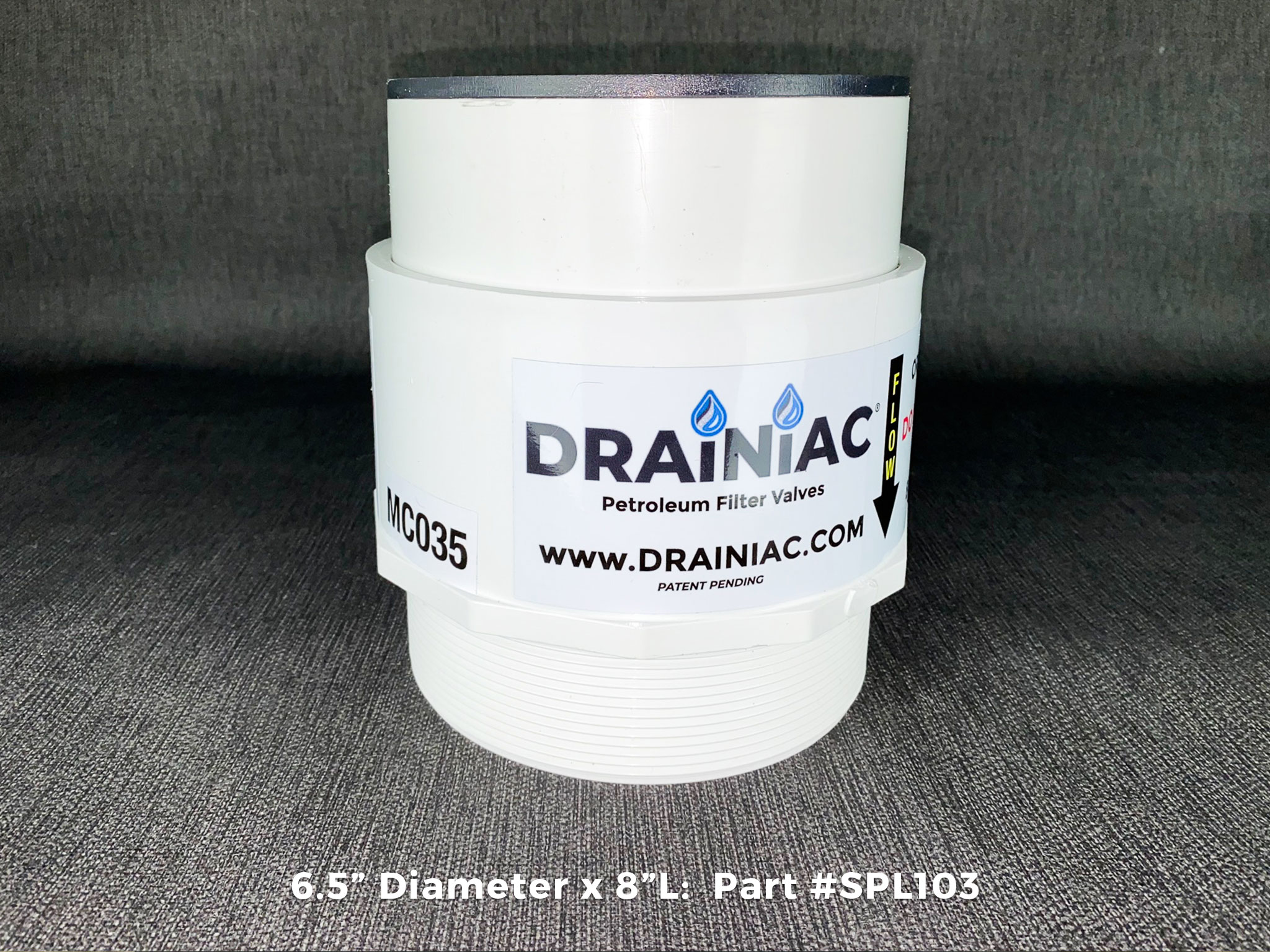

  • SPL103:  6.5” Diameter x 8”L
    387 gallons per hour flow rate measured while draining from 2” to 1” of head pressure

*We recommend a pre-filter for Drainiac® installations

UV-Resistant

UV-Resistant

Made in the USA

Made in the USA

Filters Oil from Water

Filters Oil from Water

Clear

Description

Description

Do you have any of these problems dealing with stormwater in secondary containment?

  • Wasting time manually draining stormwater?
  • Forgetting to close drain valves?
  • Hiring expensive vac trucks to haul and dispose of oily sheen water?
  • Replacing existing, expensive filter valves that are clogged with sediment?
  • Algae buildup inside containment?
  • Frozen containment floors in the winter?

Fortunately, there is a better way.  The Drainiac® Petroleum Filter Valve.

A patented secondary containment filter valve that:

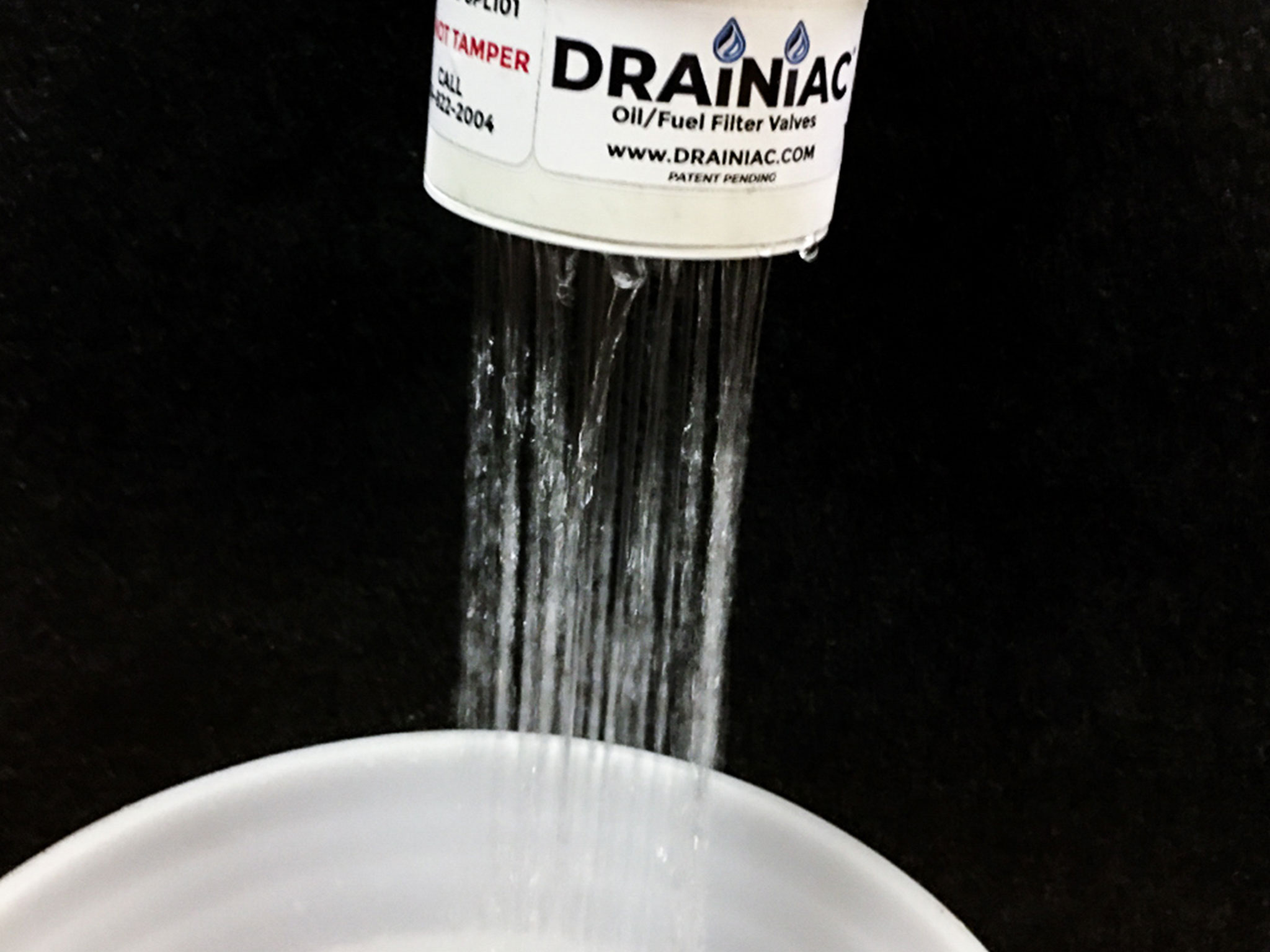

  • Filters Oil & Fuel:  Allows stormwater to drain from your secondary containment system while effectively filtering oily sheen.
  • Captures Sediment:  The Drainiac® Pre-Filter System (not included) captures sediment before it clogs your expensive filter valve.
  • Two pre-filter options, based on your application:
  • Prevents Spills:  Automatically swells up and shuts off.  Prevents a catastrophic oil or fuel spill from escaping your secondary containment.
  • Saves Money:  Eliminates the high cost to pump, haul, and dispose of contaminated secondary containment water.
  • Minimize your “Headache Calls”:  No oil sheens outside containment.  No overflowing containment. No vac trucks.
  • Drains 4x Faster than other “similar” products.
  • Prevent Tripping Hazards:  400% smaller than “similar” products.
  • Lasts up to 10x Longer:  Pre-Filter System prevents the system from prematurely clogging with silt, sediment, and debris.

Secondary Filter Valve Applications

  • Electrical substation containment

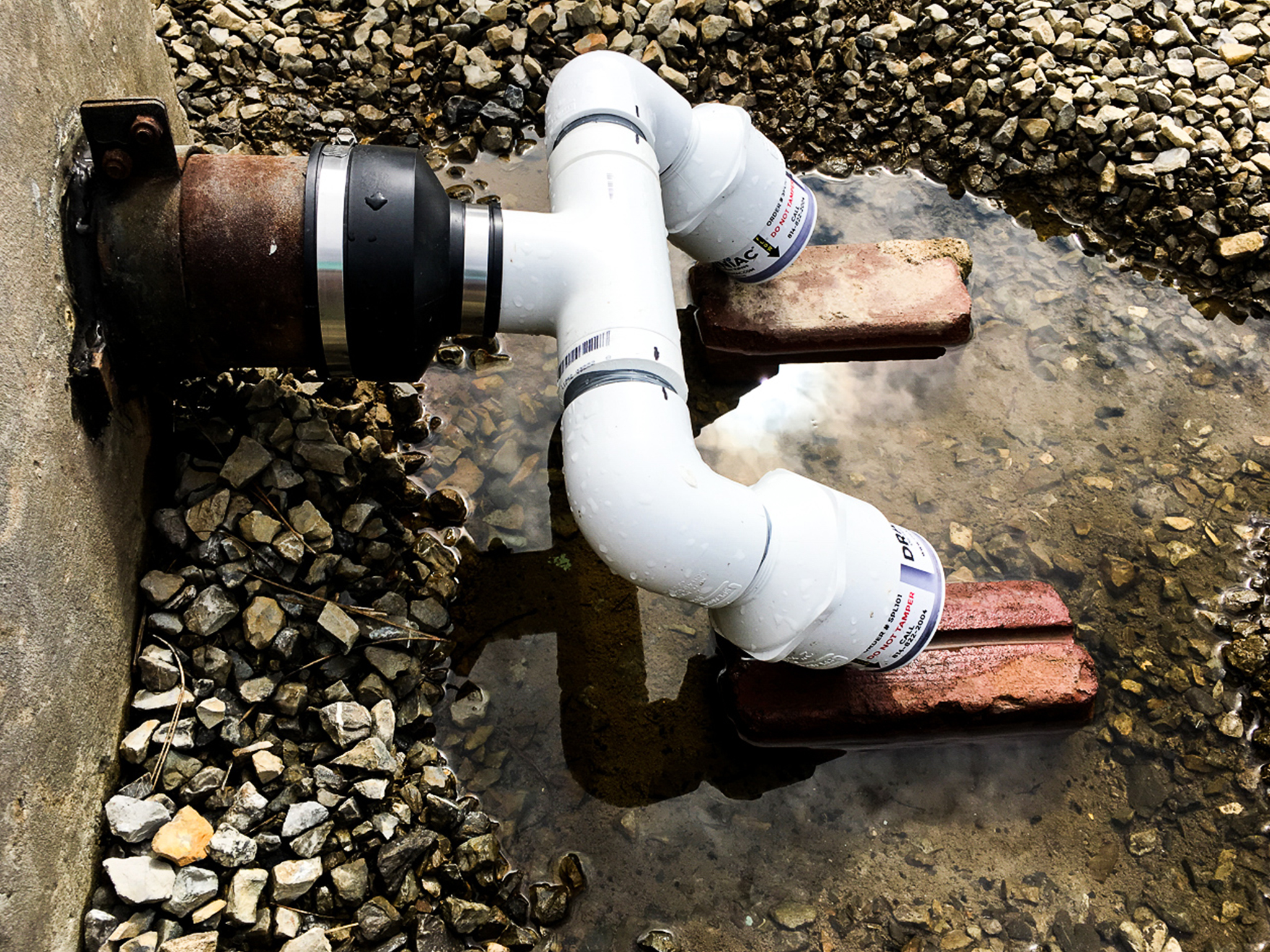

  • Above-ground storage tank secondary containment

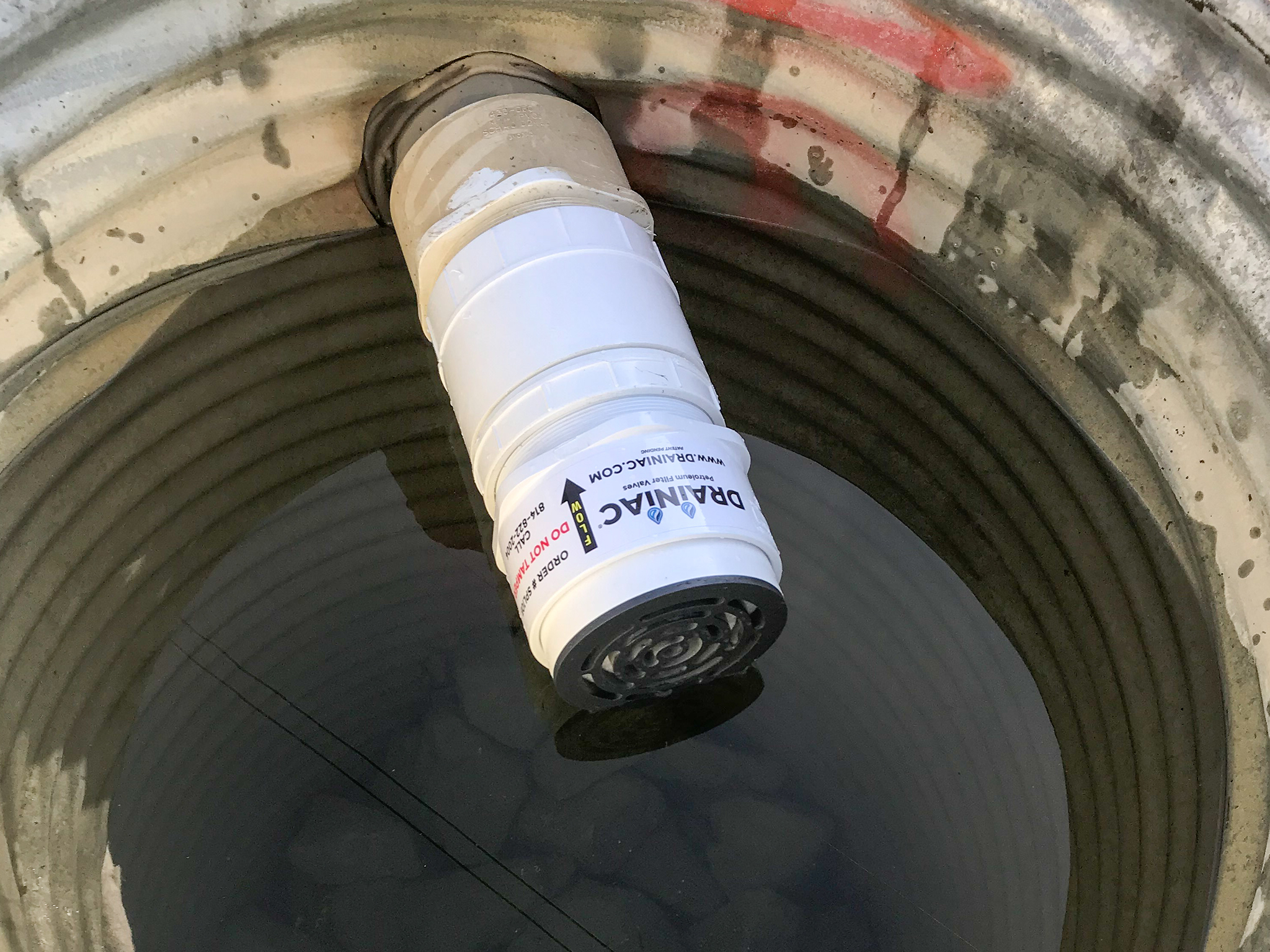

  • Outfalls for oil/water separators
  • Cooling tower wastewater
  • Portable secondary containment
  • Bulk liquid storage stormwater outfalls
  • Skid-mounted pump and tank containment
  • Point Source Discharges

Recommendations

We recommend a pre-filter for Drainiac® installations

Learn More:

Blog: How to Prevent Secondary Containment System Overflows and Oil Discharges
Regulations: Secondary Containment Systems

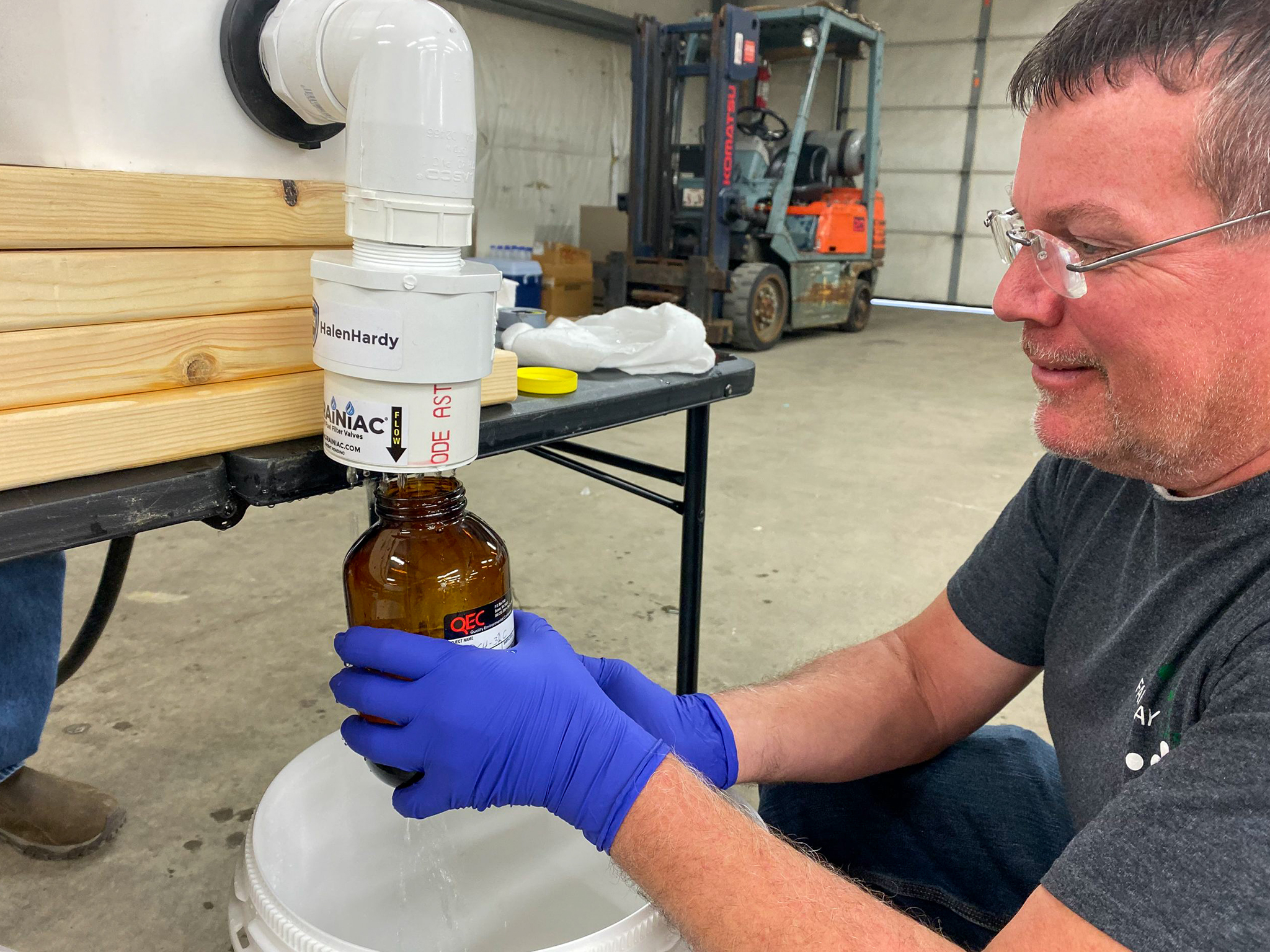

In the Lab: Drainiac® Petroleum Filter Valves – TOG in Stormwater Test
In the Field: Secondary Containment Systems at Bulk Liquid Terminals
Technology: Harnassing Innovation to Achieve Perfect Stormwater Discharge
Download: Drainiac® Installation GuideDrainiac® BrochureDrainiac® Product Line Catalog

Videos

Videos

Drainiac® Petroleum Filter Valve reduces the risk of accidental oil discharges

Are you still draining secondary containment stormwater by hand?

Before and After the Drainiac® Petroleum Filter Valve System

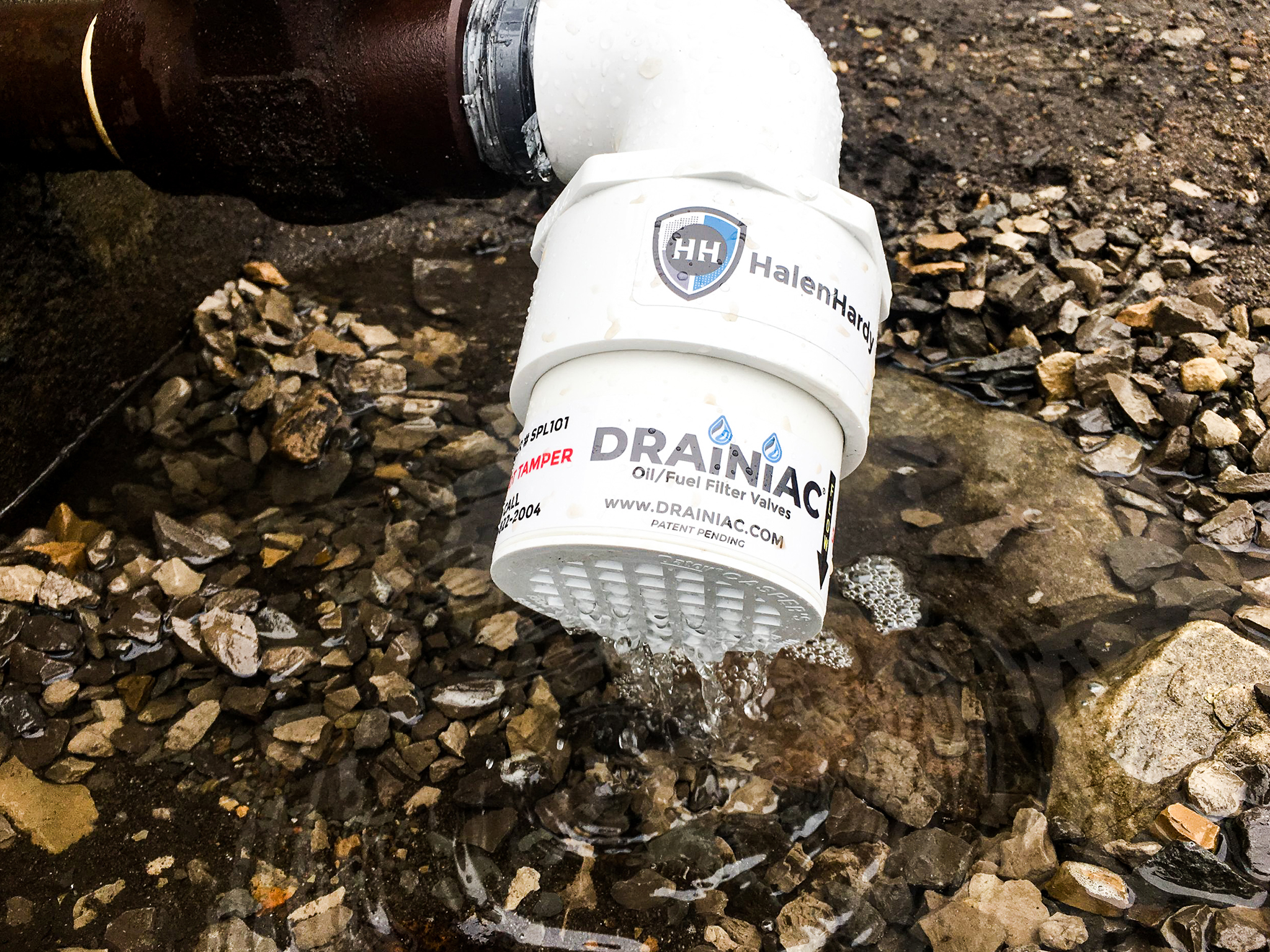

Filter and encapsulate sheens from your stormwater 24/7

Product Specifications

Product Specifications

Flow Rate:  While all other manufacturers measure their flow rates at a constant 2” head pressure, we measure ours based on what is happening in the real world.

Cutoff Loss:  Other manufacturers allow various amounts of petroleum to pass through their valves before complete shut off.  The Drainiac Petroleum Filter Valve System is engineered to not allow any petroleum products to escape. Therefore, there is no loss.

SKU SPL101 SPL103 SPL101-.75MIPT
Dimensions 3.5” Diameter x 5.5”L 6.5” Diameter x 8”L 3.5″ Diameter x 6″L
Sold As Each Each Each
Inlet Fitting 2” Male NPT threaded adapter.
We are happy to quote you on custom adapters based on your specific needs.
6” Male NPT threaded adapter.
We are happy to quote you on custom adapters based on your specific needs.
.75″ Male NPT threaded adapter
Flow Rate
  • 2” to 1” Head Pressure:  56.6 gal./hr.
  • 1” to 0” Head Pressure:  41 gal./hr.
  • 2” to 1” Head Pressure:  387 gal./hr.
  • 1” to 0” Head Pressure:  309 gal./hr.
  • 2” to 1” Head Pressure:  56.6 gal./hr.
  • 1” to 0” Head Pressure:  41 gal./hr.

View Installation Guide →

Compliance and Restrictions

Compliance and Restrictions

  • DO NOT use with acids, bases or oxidizers.
  • Dispose of used product in compliance with local, state & federal regulations
