Drainiac™ Pre-Filter System for Above-Ground Containment: SPL118

$129.00

Includes: 4 Silt Trap Socks & 8 SheenFence Sheets

Protect your Drainiac Petroleum Filter Valve from prematurely clogging with sediment and debris with this complete pre-filter system.

Made in the USA

Made in the USA

Filters Oil from Water

Filters Oil from Water

Watch the Drainiac Petroleum Filter Valve System in Action.

Description

Description

The most common cause of replacing your oil filter valves is due to them clogging with sediment or debris.

Our studies have revealed that 90%+ of the time, expensive petroleum filter valves shut off due to plugging from suspended solids (not from petroleum).  Many customers are tossing tens of thousands of dollars of petroleum filter valves each and every year because of sediment. After studying the problem side-by-side with our clients, we engineered an innovative pre-filter system, that extends the life of your filters.

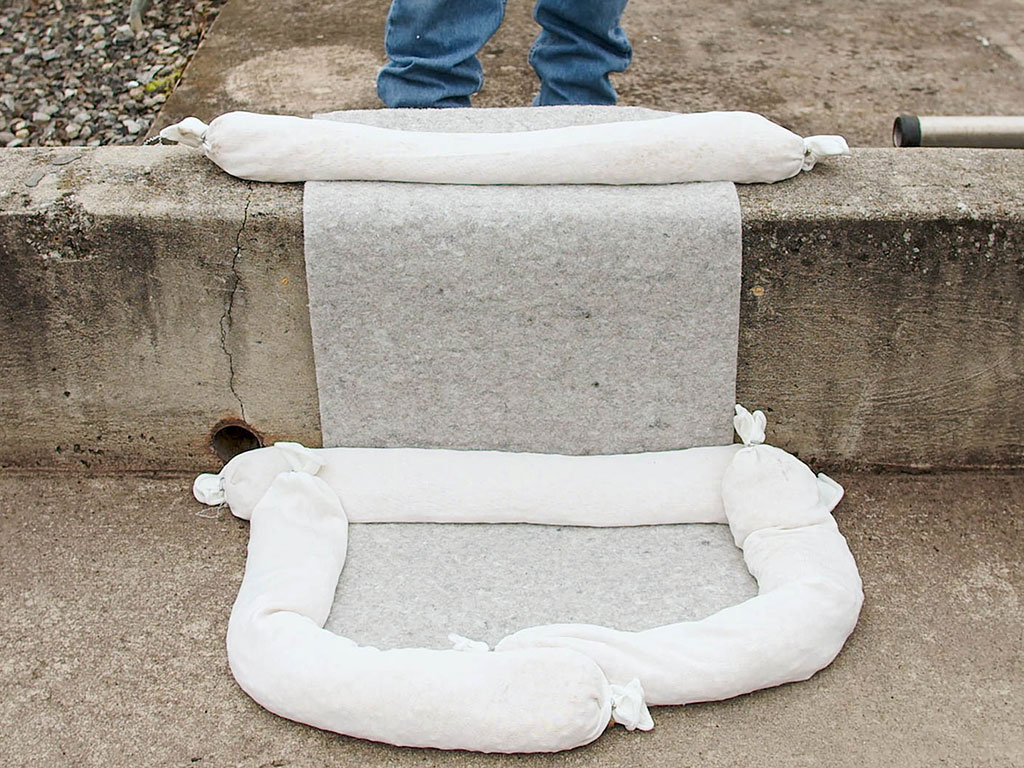

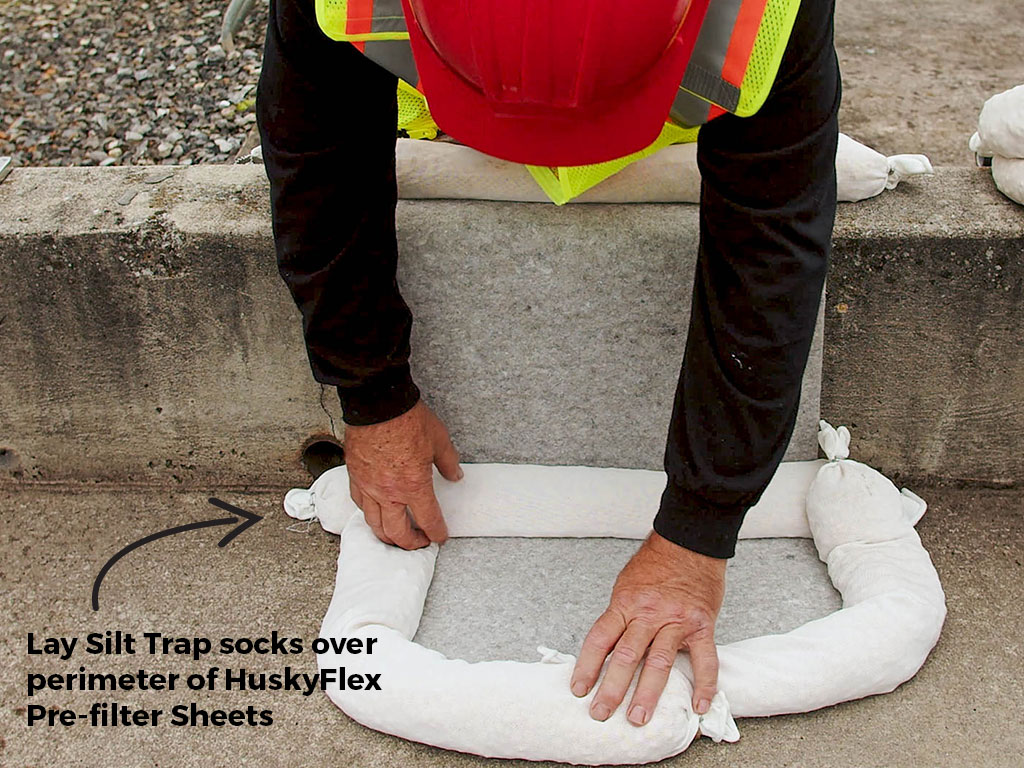

  • Silt Trap Pre-Filter Socks stop larger sediment and debris in its tracks, prolonging the life of your Drainiac Petroleum Filter Valve.

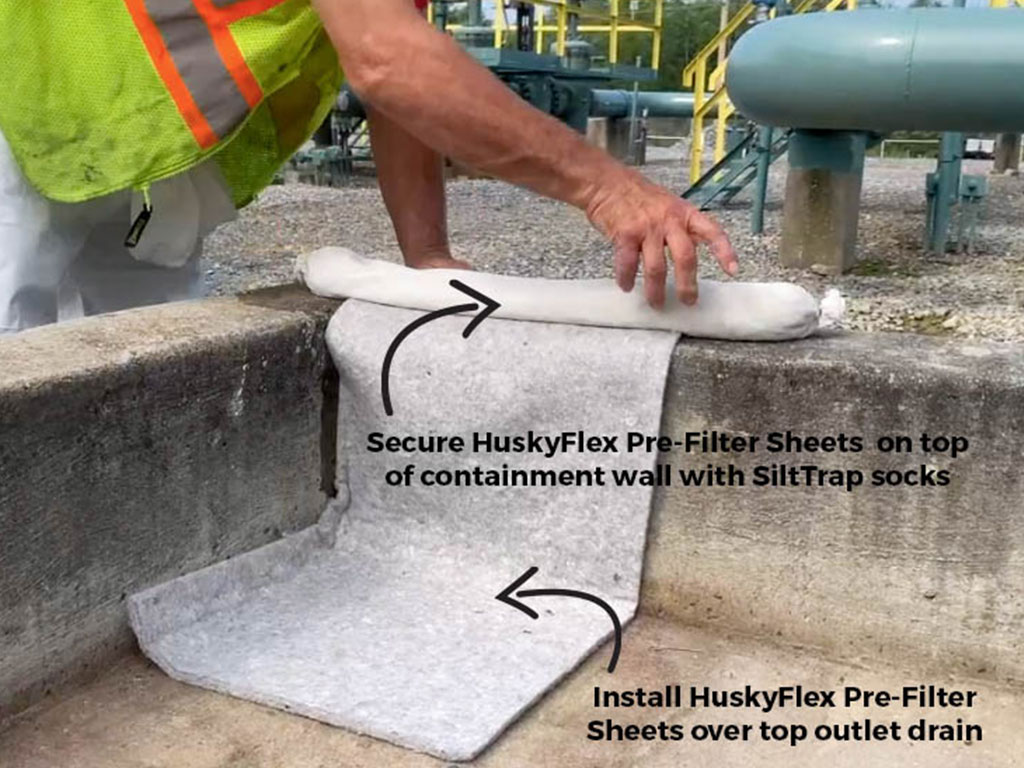

  • Silt Trap Pre-Filter Socks are also used to weigh down your SheenFence Pre-Filter Sheets and prevent them from blowing away.
  • SheenFence Pre-Filter Sheets filter out the finer sediment, down to 100 microns.
  • SheenFence Pre-Filter Sheets also engineered to remove a majority of oil and fuel sheen.

Videos

Videos

Drainiac petroleum filter valve system

Drainiac Petroleum Oil Fuel Filter Valve for Above Ground Secondary Containment

Drainiac Before

Drainiac After

Product Specifications

Product Specifications

Substance Filtered:  Oil, Sediment, Debris & Trash

Sold as:  8 SheenFence sheets & 4 Silt Trap socks

Dimensions:

Drainiac SheenFence Pre-Filter Sheet:  20” x 30” per sheet

Drainiac Silt Trap Socks:  3.5” x 1.5” x 24” per sock

Package Weight: 20 lbs.

Max Flow Rate:  110 gal./min.

Recycled Content:  No

UV Resistant:  Yes

Compliance and Restrictions

Compliance and Restrictions

  • DO NOT use with acids, basis or other caustic liquids.
  • Dispose of used product in compliance with local, state & federal regulations
