Spilltration® Above-Drain Oil & Sediment Stormwater Filter

$104.00$199.00

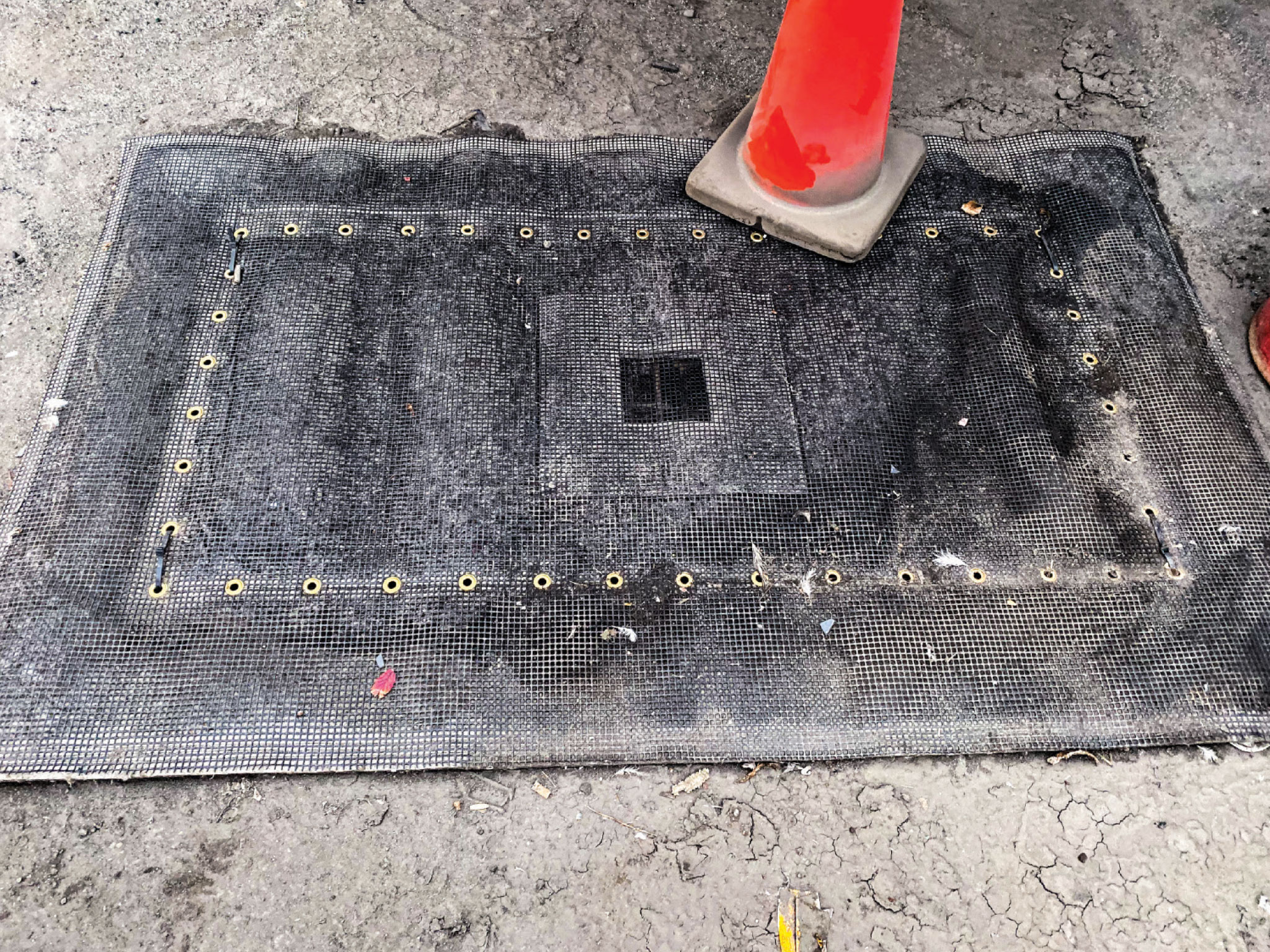

Prevent oil and sediment from entering your drains and creating stormwater non-compliance issues with the Spilltration Above-Drain filter.

For drain sizes:

  • 24″  x 24″ – Part #SPL098-3030
  • 24″ x 36″ – Part #SPL098-4230
  • 24″ x 48″ – Part #SPL098-3054
  • 42″ x 42″ – Part #SPL098-4848

For custom drain sizes:  Call 814-822-2004 to order or request pricing.

Recycled

Recycled

UV-Resistant

UV-Resistant

Made in the USA

Made in the USA

Filters Oil from Water

Filters Oil from Water

Clear

Description

Description

How did our customer help us develop the Spilltration Over-the-Drain Stormwater Filter?

They were using our Spilltration Husky materials for oil clean up while it was raining.  Realizing how great the product worked for that application, they asked if it could also filter sediment.  A few tests and the answer was “yes.” From there, they asked for the following attributes:

  • Fits over the drain for easy maintenance.
  • Works on oils, sheens, sediments and debris.
  • Durable enough to be driven over.
  • High flow rates.
  • Overflow port to prevent water from backing up, in a heavy rain event.
  • Holds up to UV exposure.

And, that’s how the Spilltration Over-the-Drain Stormwater Filter was developed.

Now after numerous real-world uses, it has become a part of a number of our customers’ Best Management Practices (BMPs) for preventing stormwater pollution.

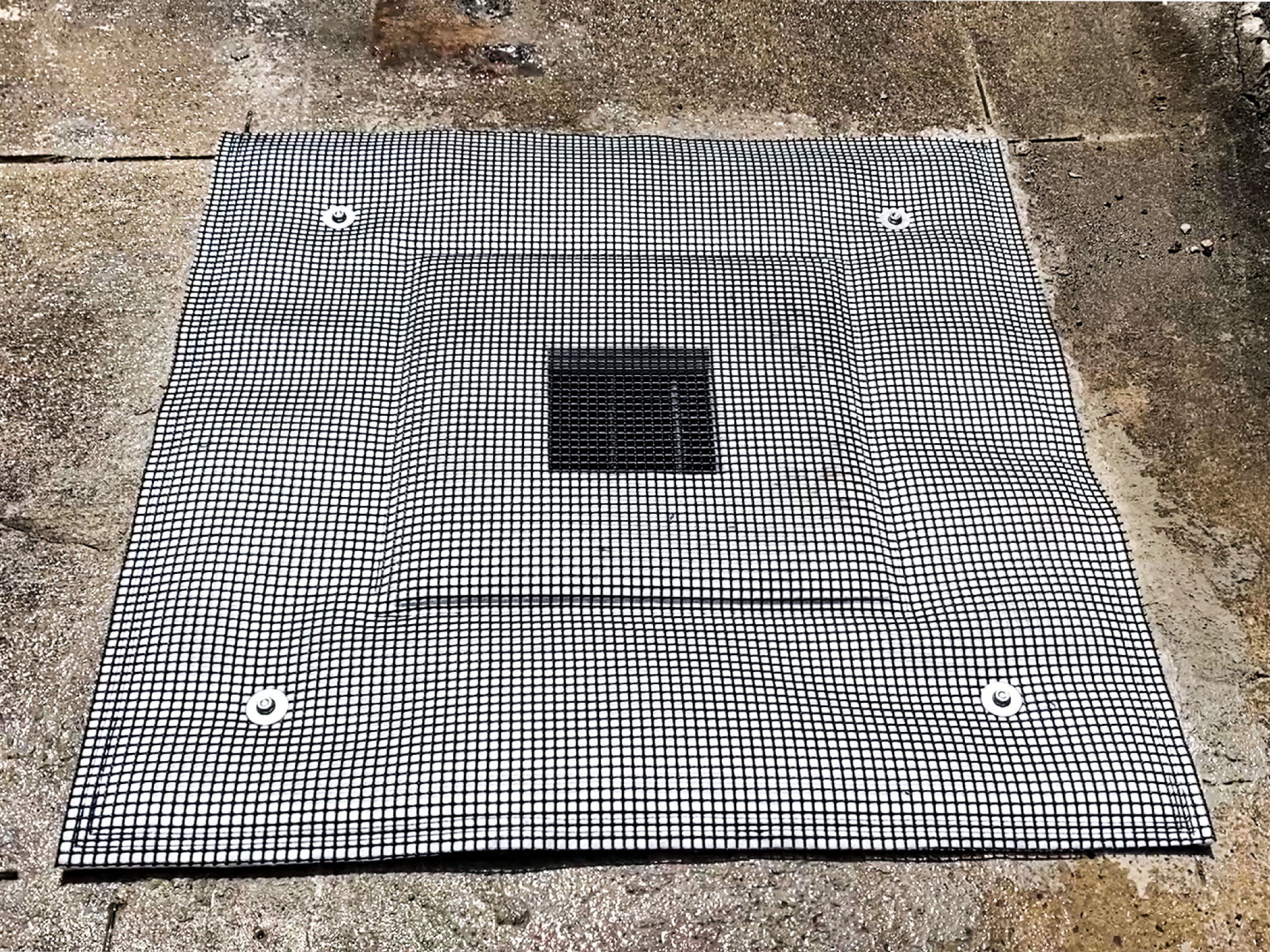

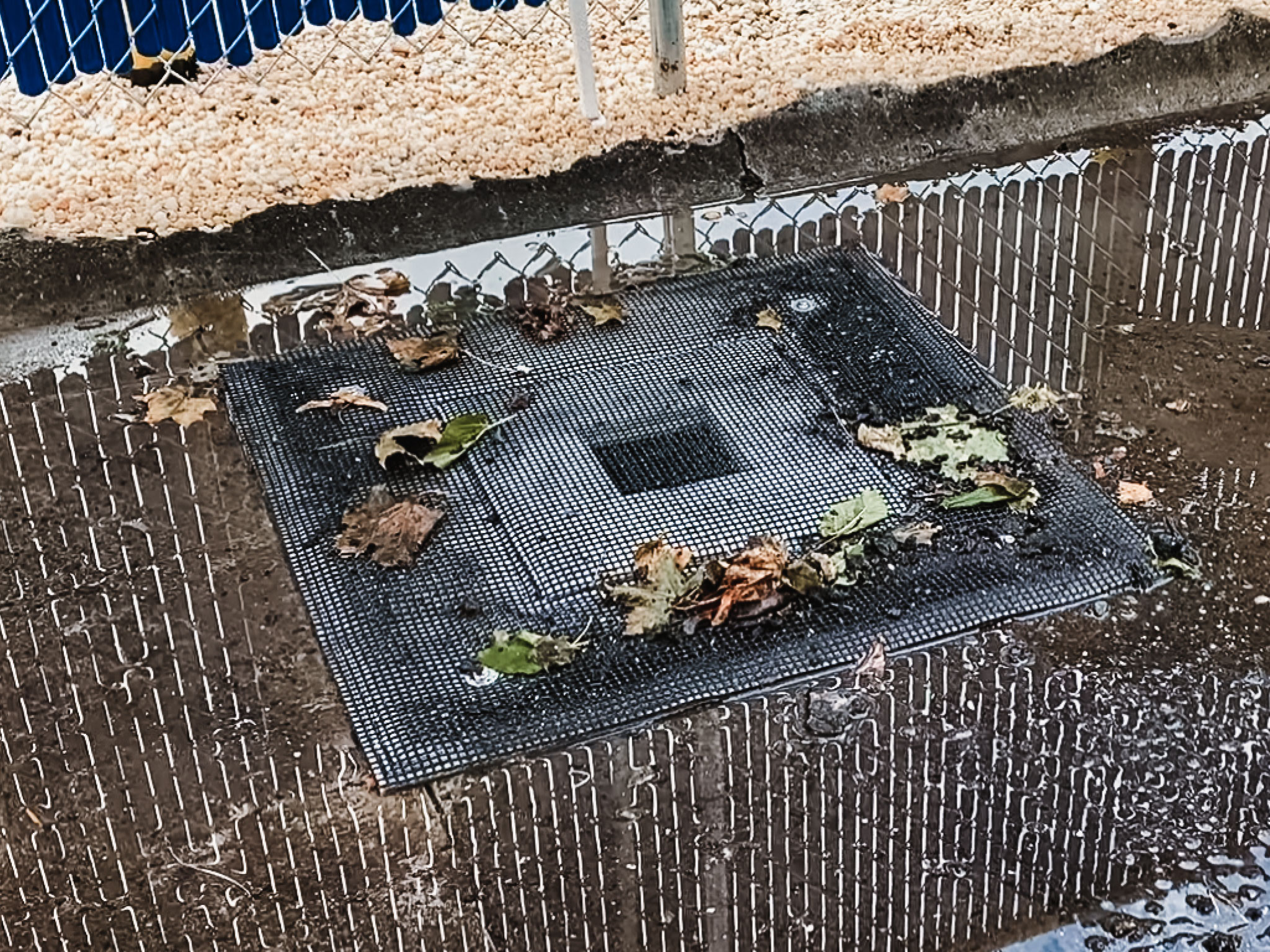

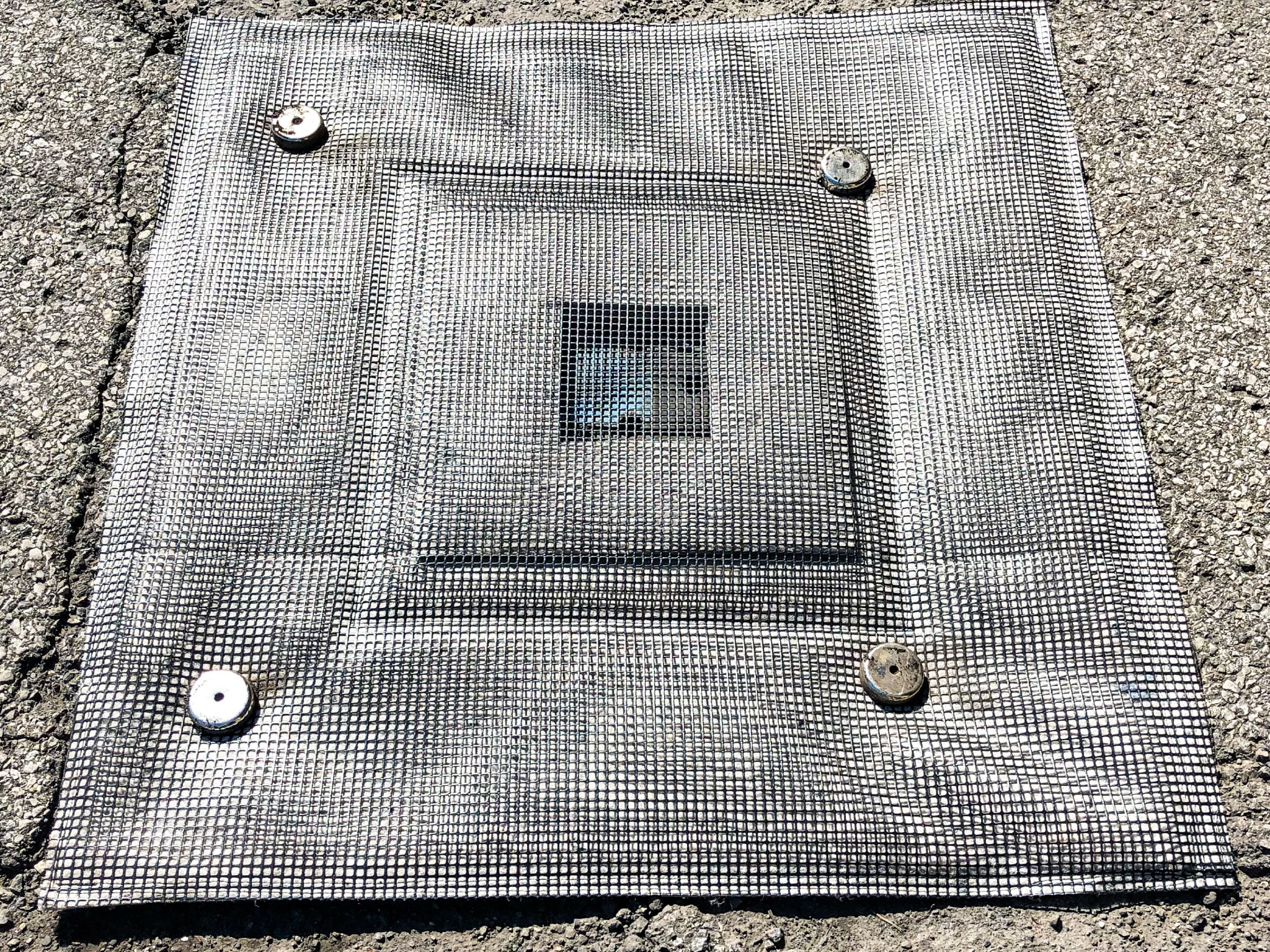

Key Attributes:

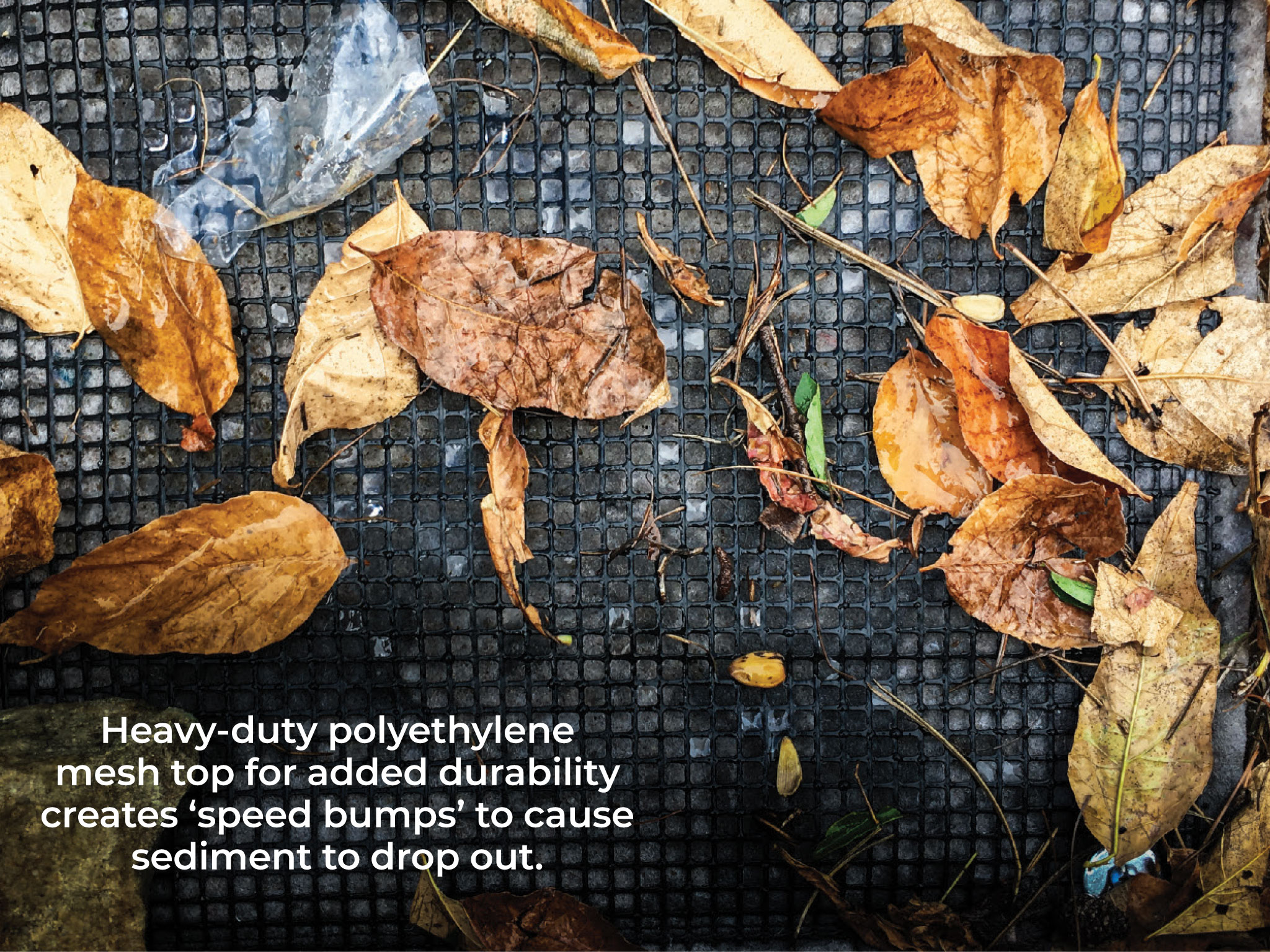

  • Heavy-duty polyethylene mesh top for drive over durability.

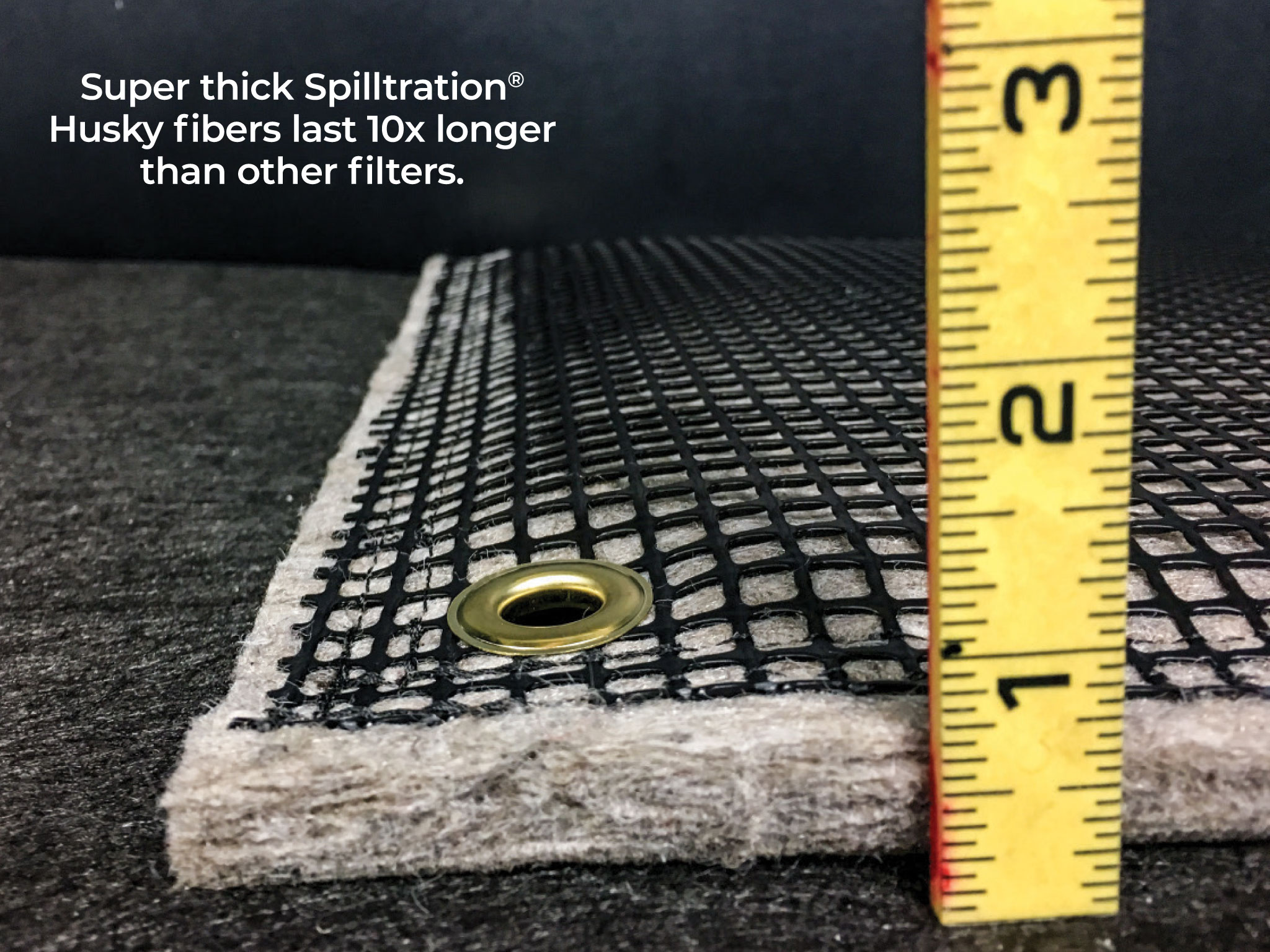

  • Spilltration Husky filtration layer for removing oils, fuels, sheens and sediments.
  • Raised center for capturing crap during higher flow situations.

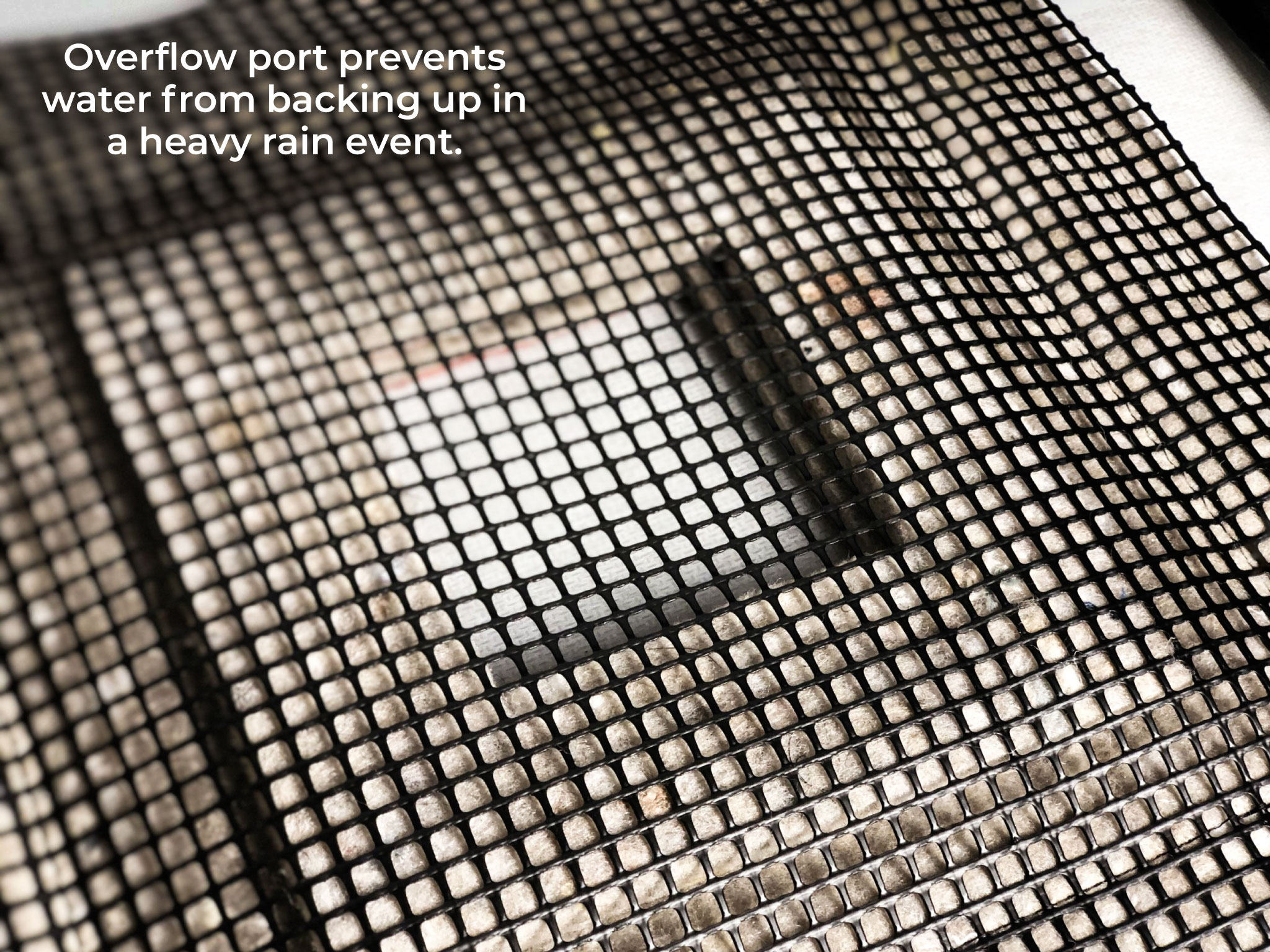

  • Overflow port, to prevent water from backing up, in heavy rain event.
  • Grommets to easily tie to the grate with wire ties (not included).

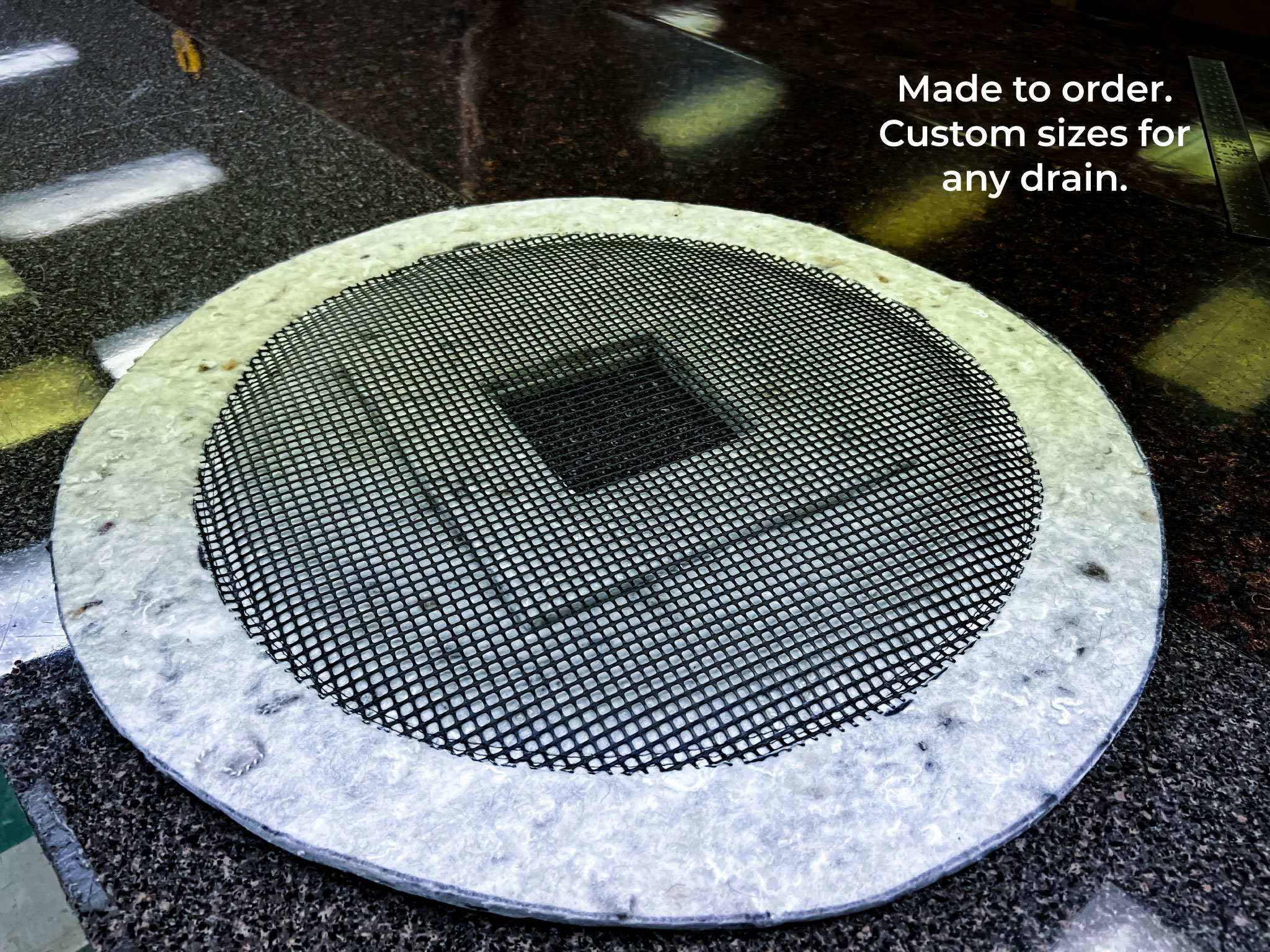

Not seeing a size that you need?  “Click Here” and fill out the form.  We will get back to you with a quote, as soon as possible.

Product Specifications

Product Specifications

SKU SPL098-3030 SPL098-4230 SPL098-3054 SPL098-4848
Substance Filtered Oils, Sediments,
Debris and Trash
Oils, Sediments,
Debris and Trash
Oils, Sediments,
Debris and Trash
Oils, Sediments,
Debris and Trash
Dimensions 30”W x 30”L x 1”H 30”W x 42”L x 1”H 30”W x 54”L x 1”H 48”W x 48”L x 1”H
For Drain Sizes 24” x 24” 24” x 36” 24” x 48” 42” x 42”
Overflow Hole Size 6” x 6” 6” x 6” 6” x 6” 6” x 6”
Sold as Each Each Each Each
Absorbency 2.04 gal. each 2.85 gal. each 3.67 gal. each 5.0 gal. each
Max Flow Rate 637 gal./min 892 gal./min. 1,147 gal./min. 1,632 gal./min.
Weight Each 1.6 lbs. 3.1 lbs. 4 lbs. 4.1 lbs.
Recycled Content YES YES YES YES
UV Resistant YES YES YES YES

Compliance and Restrictions

Compliance and Restrictions

  • Husky products do NOT float. NOT for use on water.
  • DO NOT use with acids, basis or other caustic liquids.
  • Dispose of used product in compliance with local, state & federal regulations
